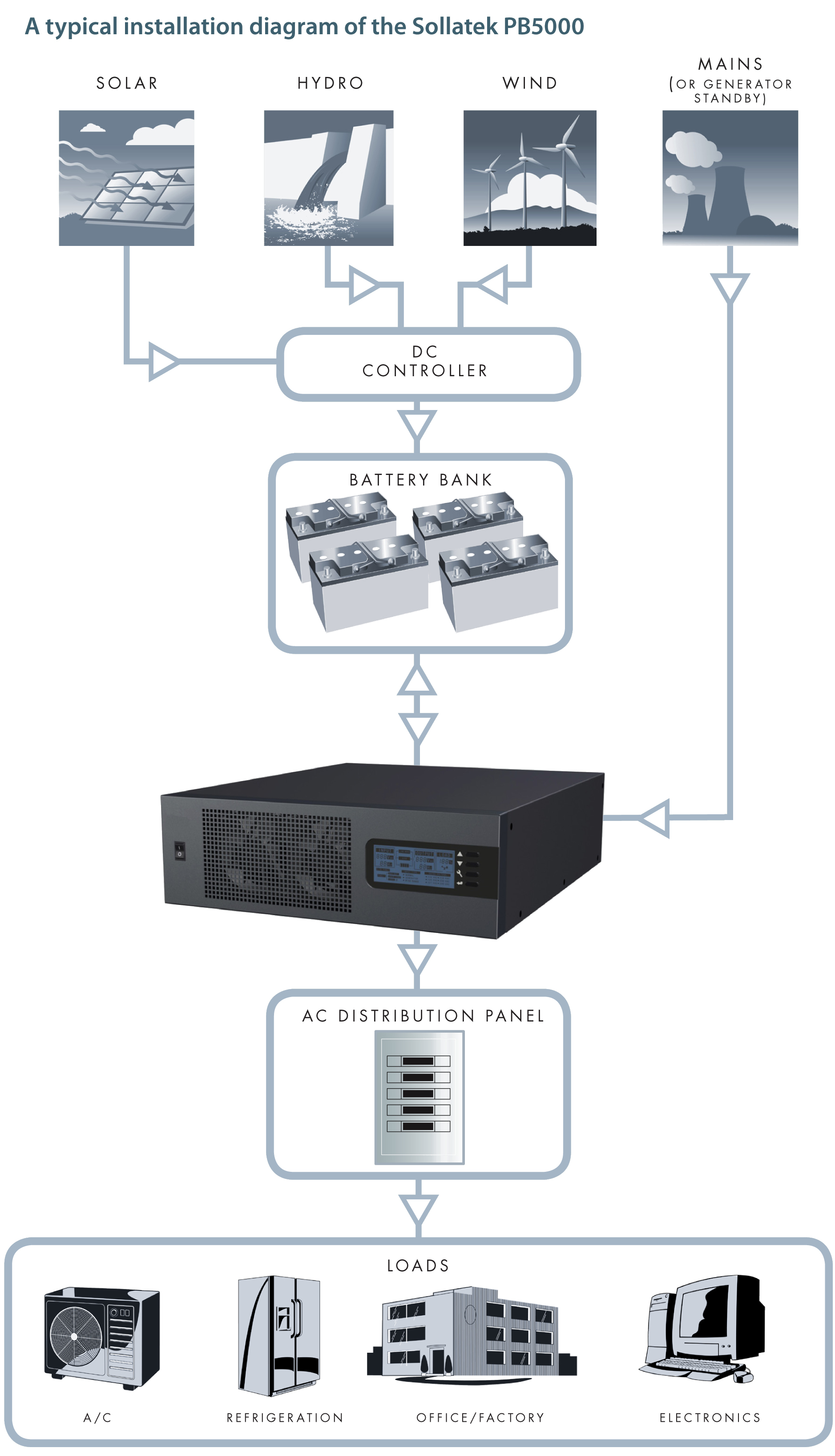

The PB5000 is designed to provide power when it is needed most. Once installed by a qualified electrician and fitted with the recommended battery, you will enjoy many years of maintenance free operation. Sollatek recommends that you use Deep cycle batteries. Smallest batteries that can be used are 100Ah per battery. 4 Batteries of 12Vdc wired in series are required to provide 100Ah @ 48V. However, 200Ah is the recommended minimum ampere hour capacity per battery to provide a realistic autonomy.
General Specs
|
Safety Certification
|
CE(EN60950)
|
|
EMI Classification
|
EN62040-2, CLASS A
|
|
Operating Temperature Range
|
0°C to 45°C
|
|
Storage temperature
|
-15°C ~ 60°C
|
|
Altitude, operational Elevation:
|
0 ~ 1500 Meters
|
|
Relative humidity
|
5% to 95% non-condensing
|
|
Audible Noise
|
60dB max
|
|
Cooling
|
Forced air, variable speed fan
|
|
Dimension
|
350mm(W)*110mm(H)*407mm(D)
|
|
Net Weight
|
9KG
|
Approximate Backup Times
Autonomy in minutes
| Load (VA) |
100Ah 48V |
200Ah 48V |
| 500 |
245 |
490 |
| 1000 |
122 |
245 |
| 1500 |
82 |
163 |
| 2000 |
61 |
122 |
| 2500 |
49 |
98 |
| 3000 |
41 |
82 |
| 3500 |
35 |
70 |
| 4000 |
31 |
61 |
| 4500 |
27 |
54 |
| 5000 |
24 |
49 |
Back-up times depend on the quality of the battery, age of battery and type of battery. Specifications of batteries varies from one manufacturer to another.
Line Mode Specifications
| Input voltage waveform |
sinusoidal (utility or generator) |
| Nominal input voltage |
230Vac |
| Low line disconnect |
170Vac (normal), 90Vac (Genertor/wide range) |
| Low line re-connect |
180Vac (normal), 100Vac (Genertor/wide range) |
| High line disconnect |
280Vac |
| High line re-connect |
270Vac |
| Max AC input voltage |
300Vac rms |
| Nominal input frequency |
50Hz / 60Hz (Auto detection) |
| Low line frequency disconnect |
40±1Hz |
| High line frequency disconnect |
65±1Hz |
| Output voltage waveform |
same as input waveform |
| Output short circuit protection |
circuit breaker 40A |
| Efficiency (line mode) |
40A |
| Transfer time (AC to DC) |
10ms (typical), 20ms (Gen Mode) |
| Transfer time (DC to AC) |
10ms (typical), 20ms (Gen Mode) |
Inverter Mode Specifications
| Output voltage waveform |
pure sine wave |
| Rated output power(VA) |
5000 |
| Power factor |
0.84 |
| Nominal output voltage(V) |
230Vac |
| Output frequency(Hz) |
50Hz / 60Hz ± 1Hz |
| Output voltage regulation |
±10% rms |
| Nominal efficiency |
>90% |
| Overload protection |
fault after 5s@≥150% load,
fault after 10s@110%~150% load,
|
| Surge rating |
10000VA |
| Capable of starting electric motor |
2.5HP |
| Output short circuit protection |
current limit (fault after 4 cycles max) |
| Bypass breaker size |
40A |
| Nominal DC input voltage |
48V |
| Min DC start voltage |
40V |
| Low DC alarm |
42.0 ± 1.2Vdc |
| Low DC alarm recovery |
43.2 ± 1.2Vdc |
| Low DC shut-down |
40.0±1.2Vdc |
| Low DC shut-down recovery |
44.0±1.2Vdc |
| High DC Shut-down |
60.0±1.2Vdc |
| High DC shut-down recovery* |
58.0±1.2Vdc |
| Power saver setting |
0W (Set “OFF” at LCD) |
*Note: necessary condition for DC low recovery is: Line voltage must be available for charging.
Charge Mode Specifications
|
Nominal input voltage
|
230Vac
|
|
Input voltage range
|
180V~ 270Vac(Normal range)
|
|
100V~ 270Vac(generator/wide range)
|
|
Nominal output voltage(V)
|
According to the battery type
|
|
Nominal charge current
|
20A(95-175v,gen/wide,only),
35A(175-275v)@35A setting,
20A(175v-275v)@20A setting
|
|
Battery initial voltage(sps setup)
|
>35Vdc
|
|
Charger short circuit protection
|
Unit shutdown automatic
|
|
Over charge protection
|
Bat. V ≥60Vdc, Fault, Buzzer alarm
|
|
Charge algorithm
|
Three stage:
Boost CC (constant current stage) ›
Boost CV (constant voltage stage) ›
Float (constant voltage stage)
|
|
Battery type Setting(±0.3v/bat)
|
|
|
Battery type Boost CC/CV – 48V
|
Battery type Float – 48V
|
|
Flooded 58.4
|
Flooded 53.6
|
|
AGM/Gel 56.4
|
AGM/Gel 54.0
|
|
