Does the DSP cause the RCD to trip?

As the DSP surge protection component is MOV type between L-N ,N-E, there may be a very small leakage current from Live to earth caused by the MOV normal operation. The RCD may see this as an imbalance between its live and neutral currents thereby causing the RCD to trip. Suggest fit the DSP before the RCD i.e. on the RCD's input terminal side. DSP is a device that is fitted in parallel across the L-N and earth.

Where should you install a DSP when you have an RCD installed?

Best to put the DSP before the RCD.

Home / Voltage Protection / Voltsafe / Three Phase: Din Rail – T1+T2 / Three Phase: Din Rail – T1+T2 / DSP3P-100DM-T1+T2

DSP3P-100DM-T1+T2

Mains Spike & Surge Protection for Medical Equipment, Buildings, Telecom Units & Satellite/VSAT

The Sollatek D100 is a class I & II combined surge protection device. This highly efficient lightning surge arrestor is suitable for all installations where risk of surge and spike activity is particularly high, as in telecom installations, oil rigs, and open exposed areas with metal structures.

Features

Combined class I & II
Up to 100kA class I protection
Compact DIN rail mount for easy install in the field
Can be provided pre-installed in Sollatek 3 phase stabilisers*
Visual Indication of fault
Volt-free contacts for remote indication
5 year no-quibble warranty

Description

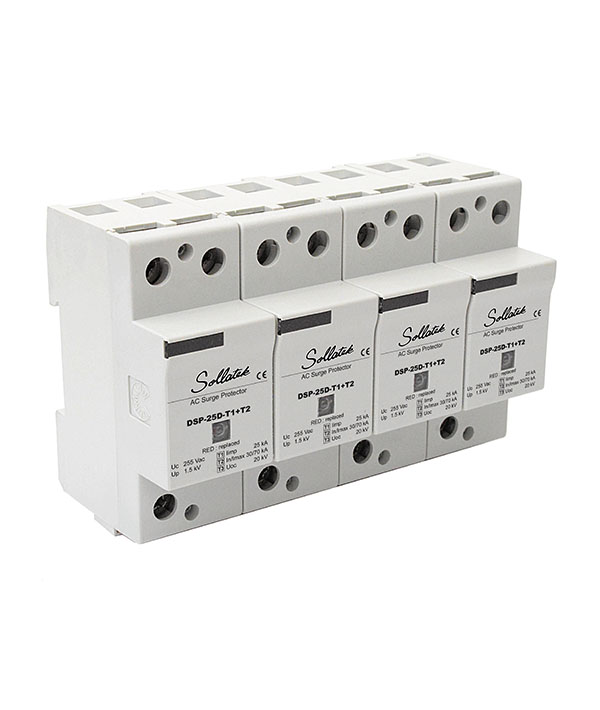

The SollatekDSP3P-100DM-T1+T2 is a Type I & II surge 3 Phase protection device. This highly efficient lightning surge arrestor is suitable for all installations where risk of surge and spike activity and, particularly due to nearby lightning activity, is high, as in telecom installations, oil rigs, and open exposed areas with metal structures. This unit should be installed in all building and sites at high risk (where a Lightning Protection System is in place and there is risk to human life such as schools, hospitals etc), and especially in climates where storms are frequent (NG > 25) or in the presence of overhead electric lines.

Specification

Phase	3
Type	Type I&II
Nominal discharge current (8/20 µs)/pole [In]	30kA
Nominal discharge current (8/20 µs)/pole [In]	70kA
Unit’s total kA	240kA (8/20µs) / 100kA (10/350µs)
Voltage protection level [Up]	1.5kV
Impulse discharge Current (10/350u/pole) [Iimp]	25kA

Downloads
Brochures
- Voltsafe Suppressor Brochure July 2014 (3MB)
Datasheets
- Voltsafe DSP3P-D100 (919KB)
Instruction Manuals
- DSP1P-DSP3P Instruction Manual (6 MB)
Click on the question to get the full answer.

Does the DSP cause the RCD to trip?
As the DSP surge protection component is MOV type between L-N ,N-E, there may be a very small leakage current from Live to earth caused by the MOV normal operation. The RCD may see this as an imbalance between its live and neutral currents thereby causing the RCD to trip. Suggest fit the DSP before the RCD i.e. on the RCD's input terminal side. DSP is a device that is fitted in parallel across the L-N and earth.
Where should you install a DSP when you have an RCD installed?
Best to put the DSP before the RCD.
What MCB rating does one use for the Live wire on the DSP-1P?
It uses the B32 rating.
BLOGS

Are Power Surges and Spikes damaging your valuable electronics?
Did you know power surges and spikes account for 63% of all power disturbances? Power surges are caused by several things; the most common and powerful cause is lightning. Another way surges can be caused is by large appliances like air conditioners being turned on and off. Dangerous effects of Power Surges and Spikes Electrical […]

How to protect your valuable appliances from Lightning surges
Did you know that lightning is the single biggest cause of damage to and destruction of electrical and electronic equipment in homes? Due to the ever-changing climate and rising temperatures lightning strikes are becoming more and more frequent. Several things can happen in a storm. Some more catastrophic than others. The other issues are directly […]

Potential Damage Caused by Direct Lightning Strikes
Did you know that lightning is the single biggest cause of damage to and destruction of electrical and electronic equipment in industrial facilities, commercial buildings, and homes. Due to the ever changing climate and rising temperatures lightning strikes are becoming more and more frequent. This is the remanence of 2 distribution boards that have been […]
