GPL01

Power Quality Logger

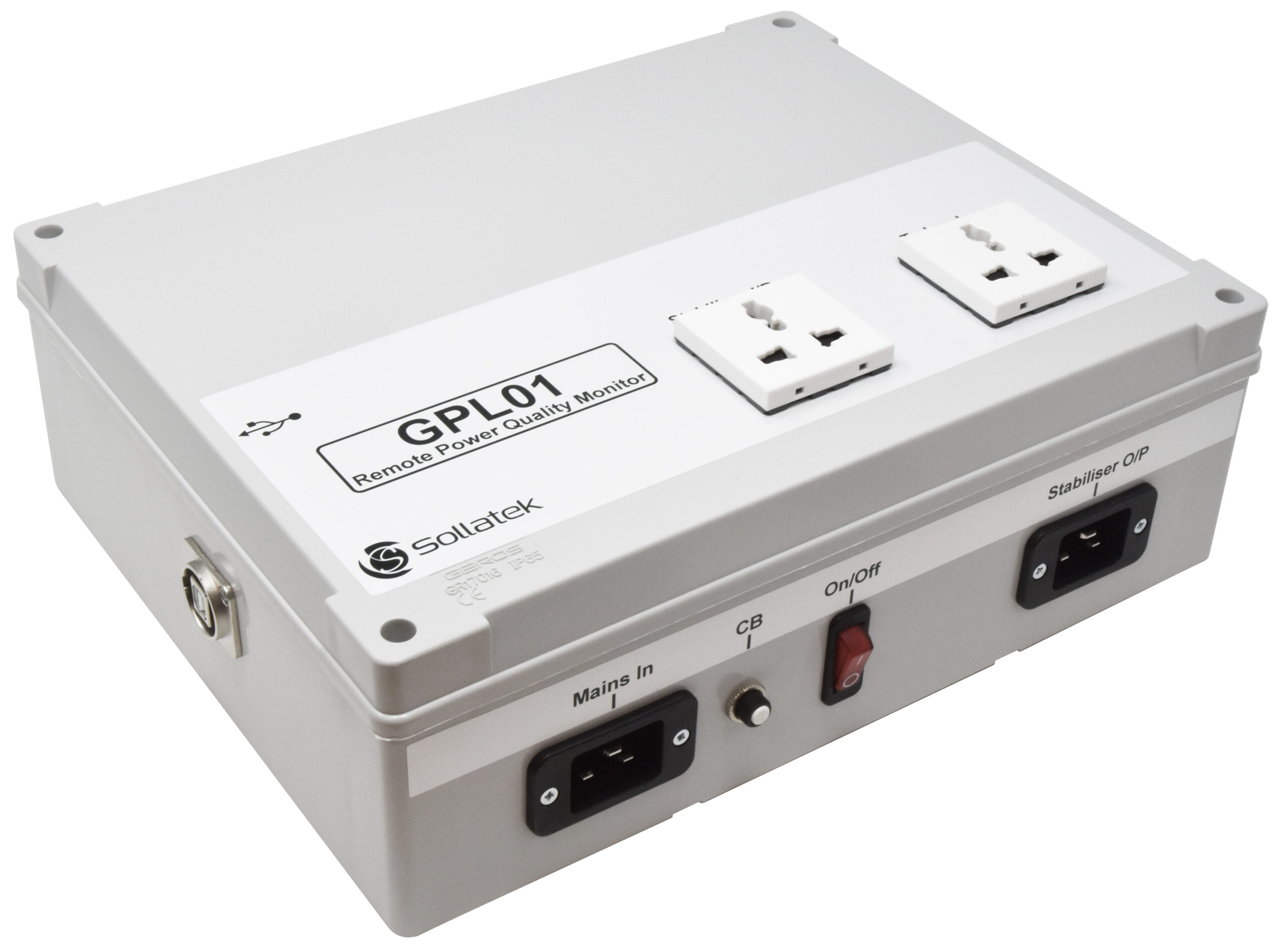

The GPL01 significantly reduces maintenance costs by offering comprehensive insights into the quality of voltage supplied to sensitive equipment. This voltage monitoring device evaluates and logs both input and output voltage from mains electricity, storing the data in a user-friendly database. This information is crucial for ensuring optimal performance of power-sensitive equipment.

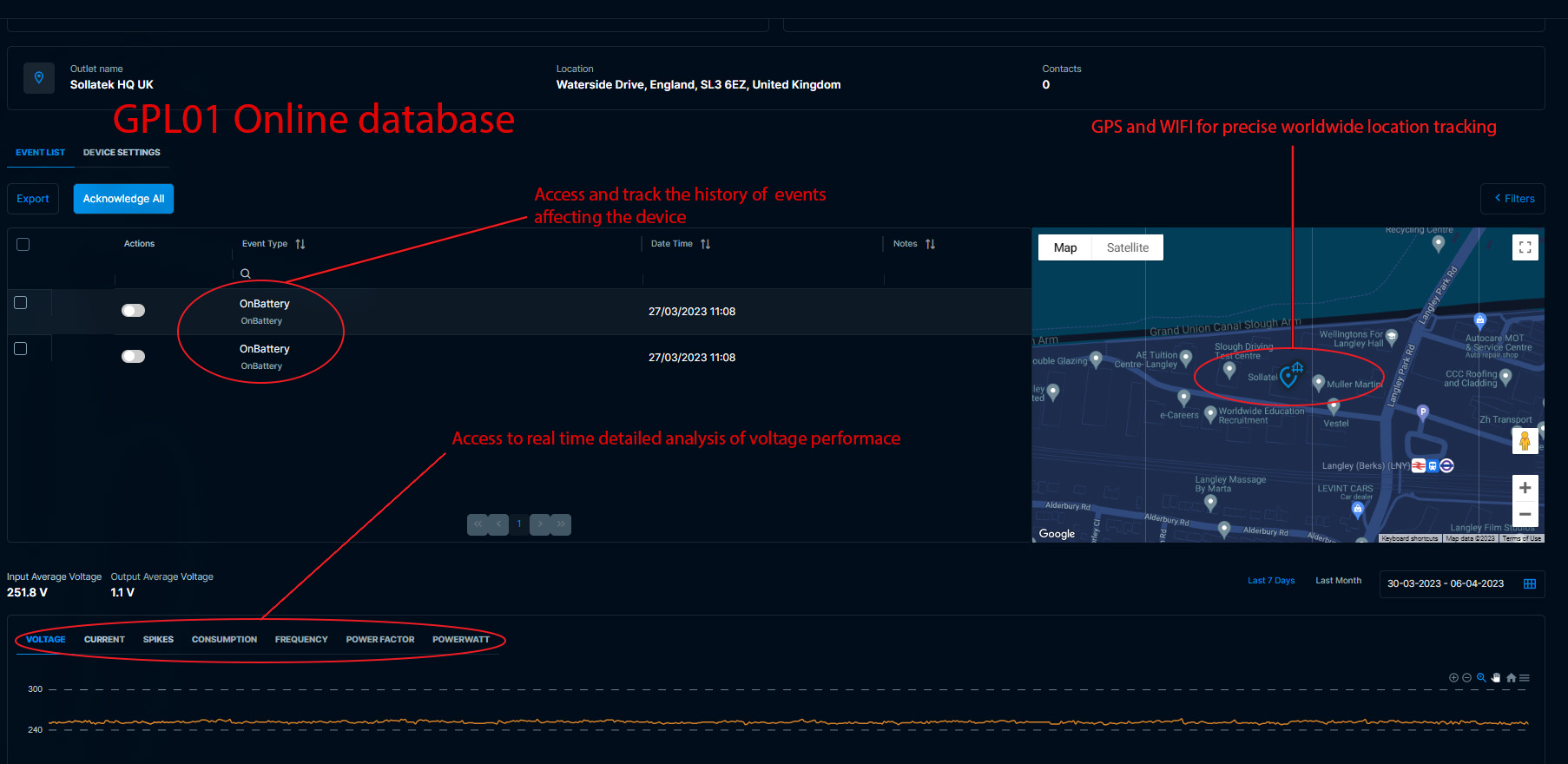

The data collected is transmitted to the Sollatek online portal, accessible globally via any web browser. Additionally, the GPL01 is equipped with GPS receivers and Wi-Fi locators, allowing for precise worldwide location tracking.

Features:

2x voltage and spike measurement
2x current measurement
Embedded Global SIM for easy deployment
GPS + WIFI for precise world wide device location
User configuration
Online portal over GSM
Local USB ( in the event remote connectivity unavailable)
Built-in memory storage of 3500 events

Description

The GPL01 system is an advanced voltage data recorder which continuously monitors the input voltage and stabilise output for power quality.

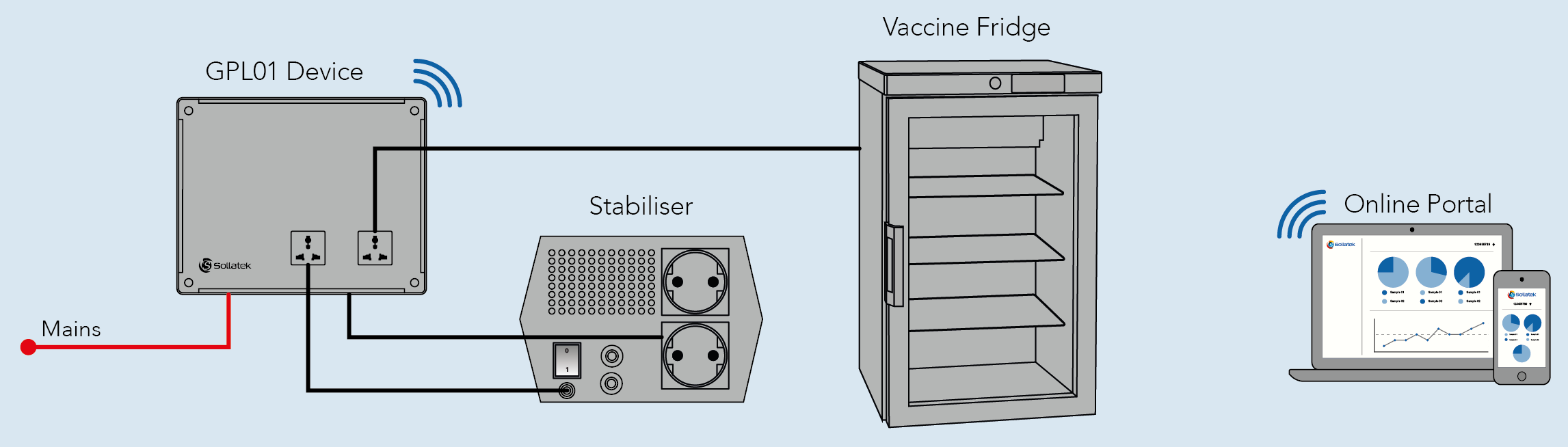

GPL01 measures both input and output voltage and records key events related to its behaviour. Over voltage, under voltage, outages and spike/surges will be monitored and recorded. The device is also compatible with Sollatek voltage stabilisers. The data is then sent to the Sollatek online portal in intervals that can be adjusted by the user. In the event of an emergency the data is sent to the portal immediately as a safety precaution.

GPS receivers and wifi locater are fitted in the system and can accurately identify the location of the device worldwide. Furthermore, easy access to data through any internet browser, enabling you to monitor the voltage remotely.

A backup rechargeable battery is also fitted to maintain the device is operational to transmit alerts during a power failure.
Downloads
Datasheets
- GPL01 Datasheet 996 (KB)
Instruction Manuals
- GPL User Instructions – French
