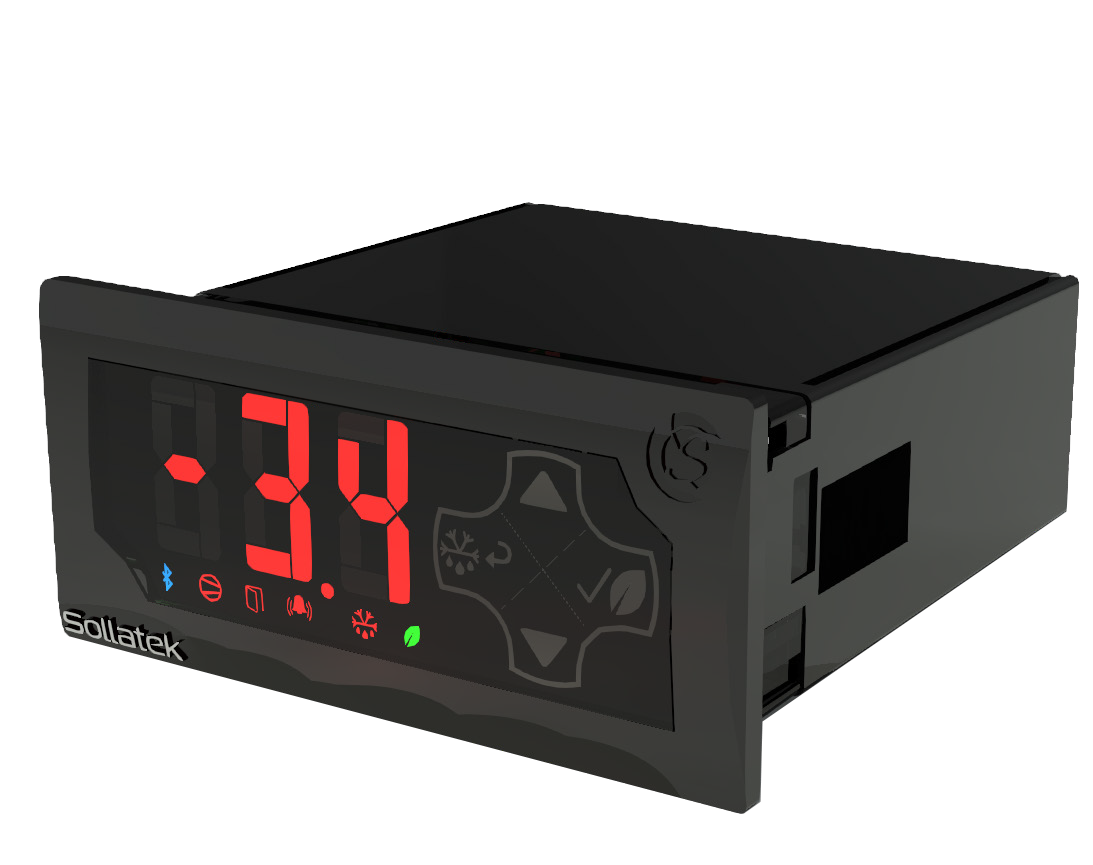

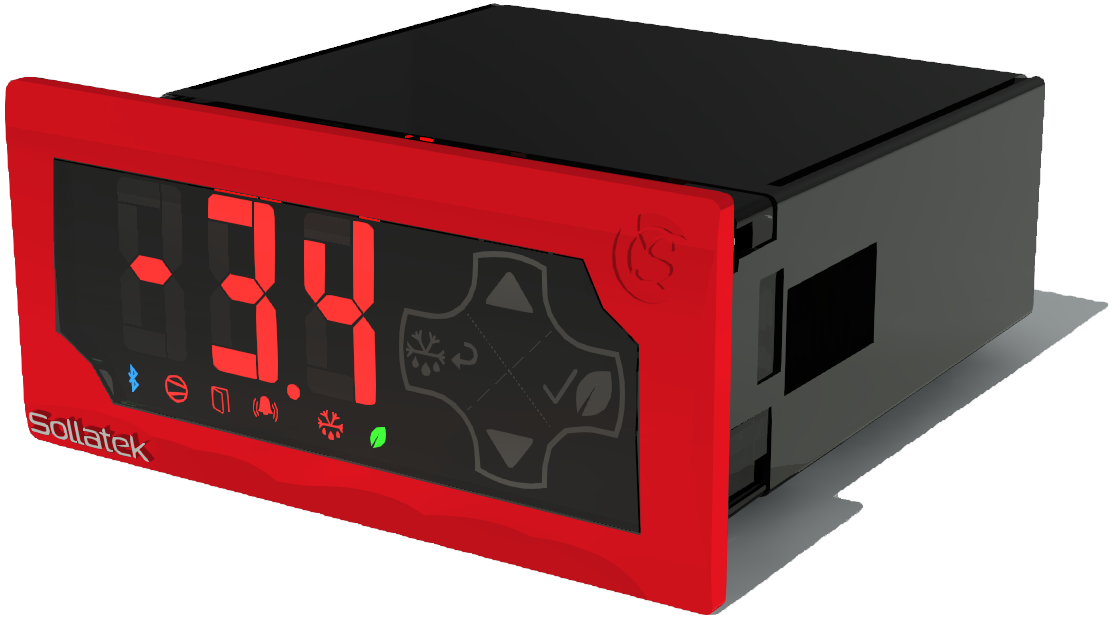

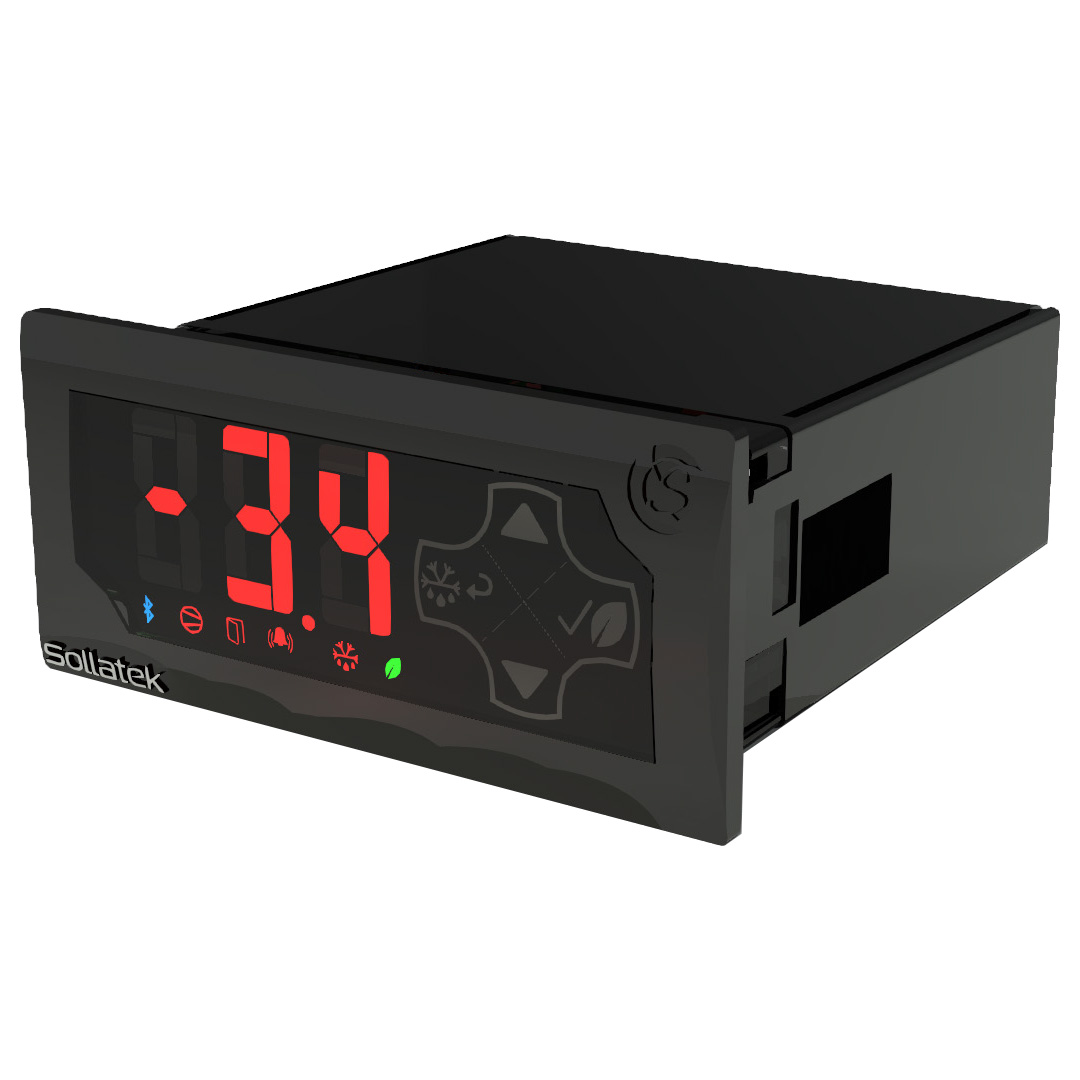

JEA

Advanced Energy Saving Controller with Connectivity Options

The JEA is an Energy Management Device (EMD) which learns the usage behaviour of appliances such as refrigerators and coolers, it constructs a pattern for the compressor and lights to deliver an energy saving routine which will be most cost effective and extend equipment lifetime.

The controller is equipped with wireless connectivity capable of recording real-time data analysis, managing setting parameters and connecting to the cloud.

Features:

Integrated Display Controller
Easy Retrofit
Up to 4 Outputs 5 Inputs
Real Time Clock
View and analyse cooler telemetry and performance data
Internal Battery
Self Learning Energy Saving Algorithm

Options

Internal Bluetooth Low Energy (BLE)
GSM data transmission (2G/3G/4G)
iBeacon and Eddystone beacon capabilities – Send special promotions and product campaign
WiFi/GPS function
In-store marketing and sales forecast

Description
The JEA has been designed using decades of knowledge and expertise working as a technology partner to some of the most respected Commercial Refrigerator Manufacturers and Beverage Companies in the world.

A combined Controller and Display with up to 4 Outputs/5 Inputs and Self Learning capabilities, the JEA’s user friendly programming offers industry leading Energy Saving possibilities.

Optional Built-in Bluetooth (BLE) and LiPo Battery enable the JEA to record and transmit data even when the cooler is powered off.

The JEA has been specifically designed to allow for placement into many existing refrigerator panels, as well as allowing an easy retrofit solution in the field.

Additional Features:
- 90V – 300V Universal Voltage
- AC and DC switching certified relays for lights and fans
- Advanced learning capabilities
- Capacitive touch switches
- Hydrocarbon refrigerant compatible
- IP65 front

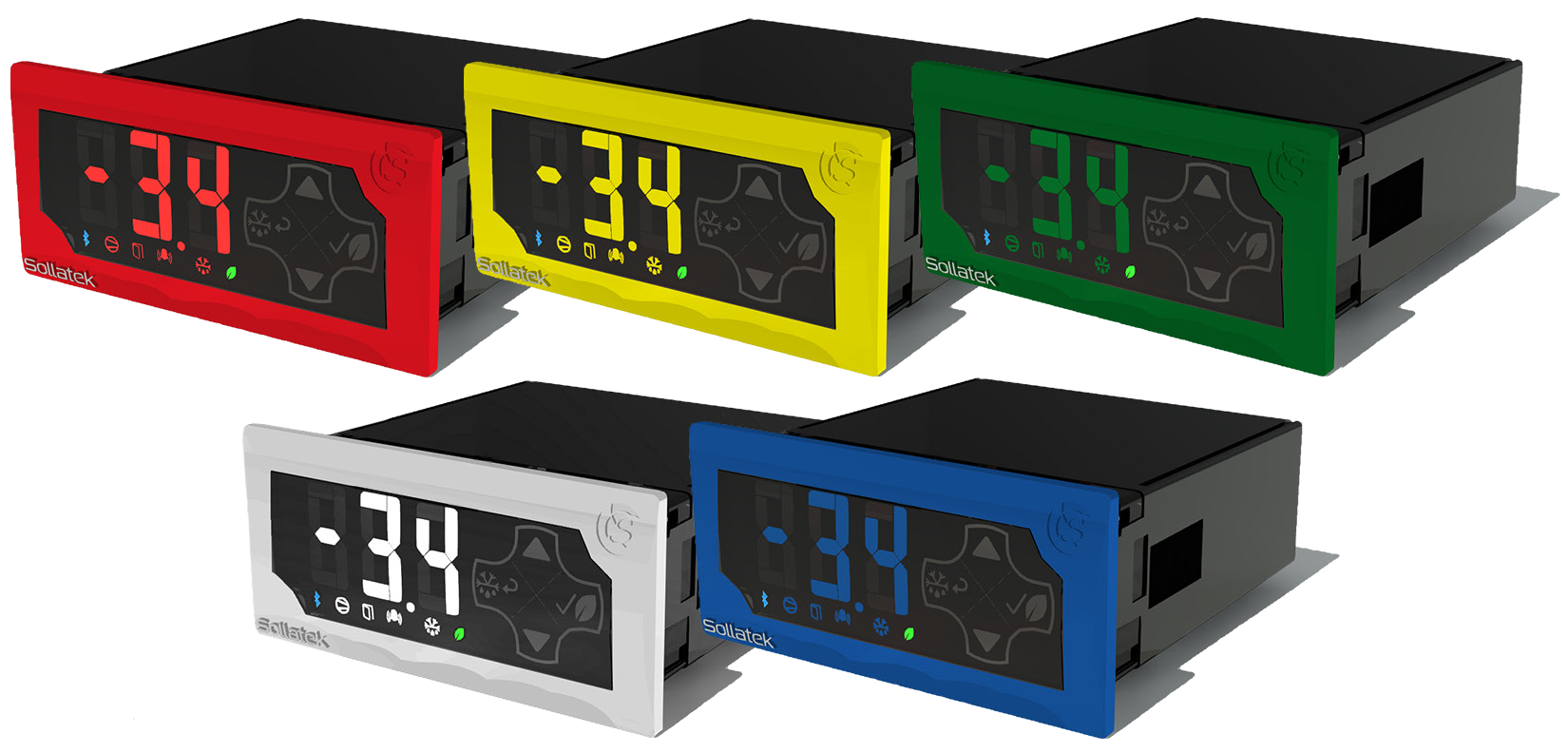

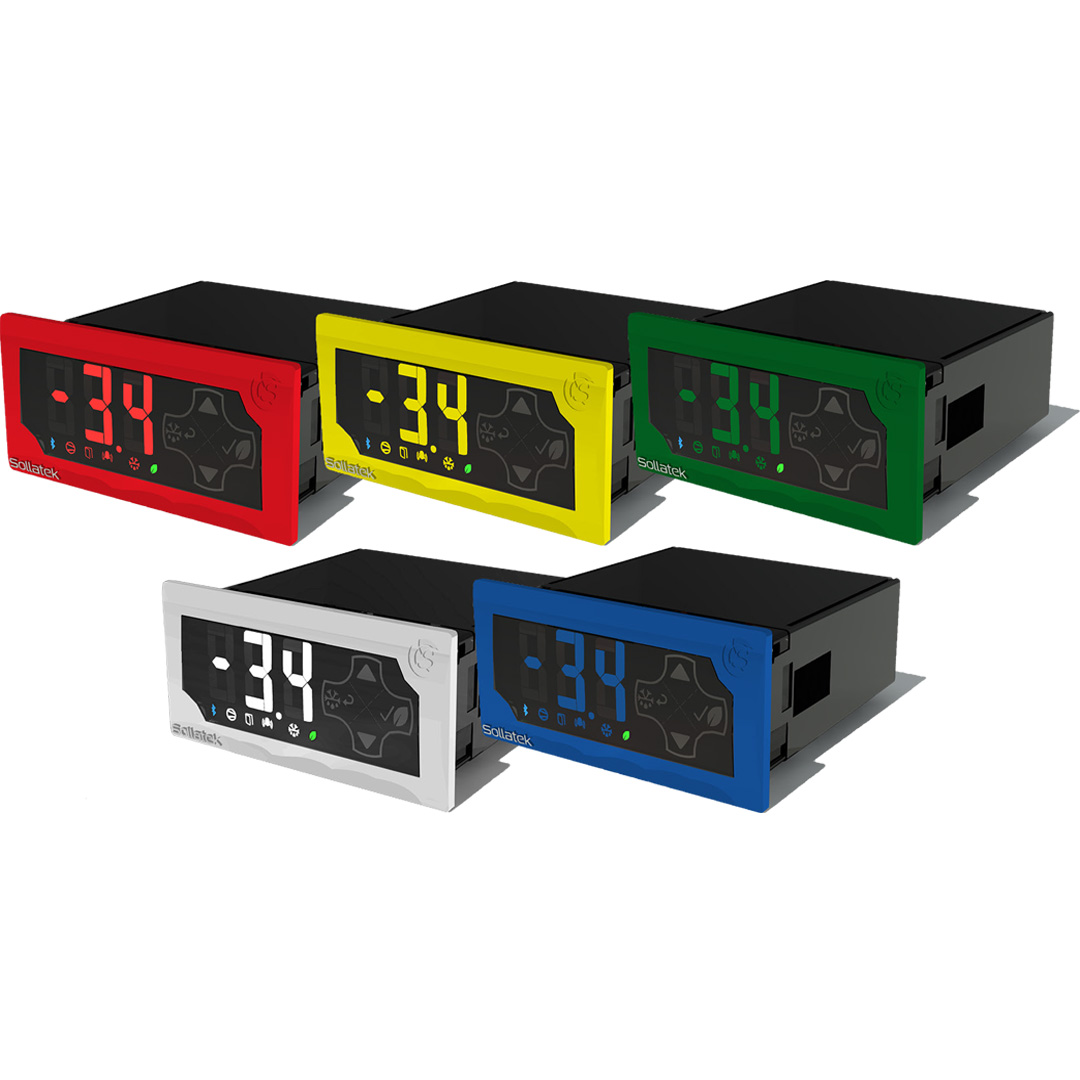

- Customisable bezel (different colours and options for customer logo)
- High visibility LED display (different LED colours available)
Downloads
Brochures
- Temperature Controllers – Connected – JEA Brochure and Datasheet (3MB)
- Temperature Controllers – Connected – Brochure (2019 Archive 7MB)
Instruction Manuals
- JEA User Manual – English (9MB)
- JEA User Manual – Spanish (10MB)
- JEA User Manual – Portuguese (9MB)
