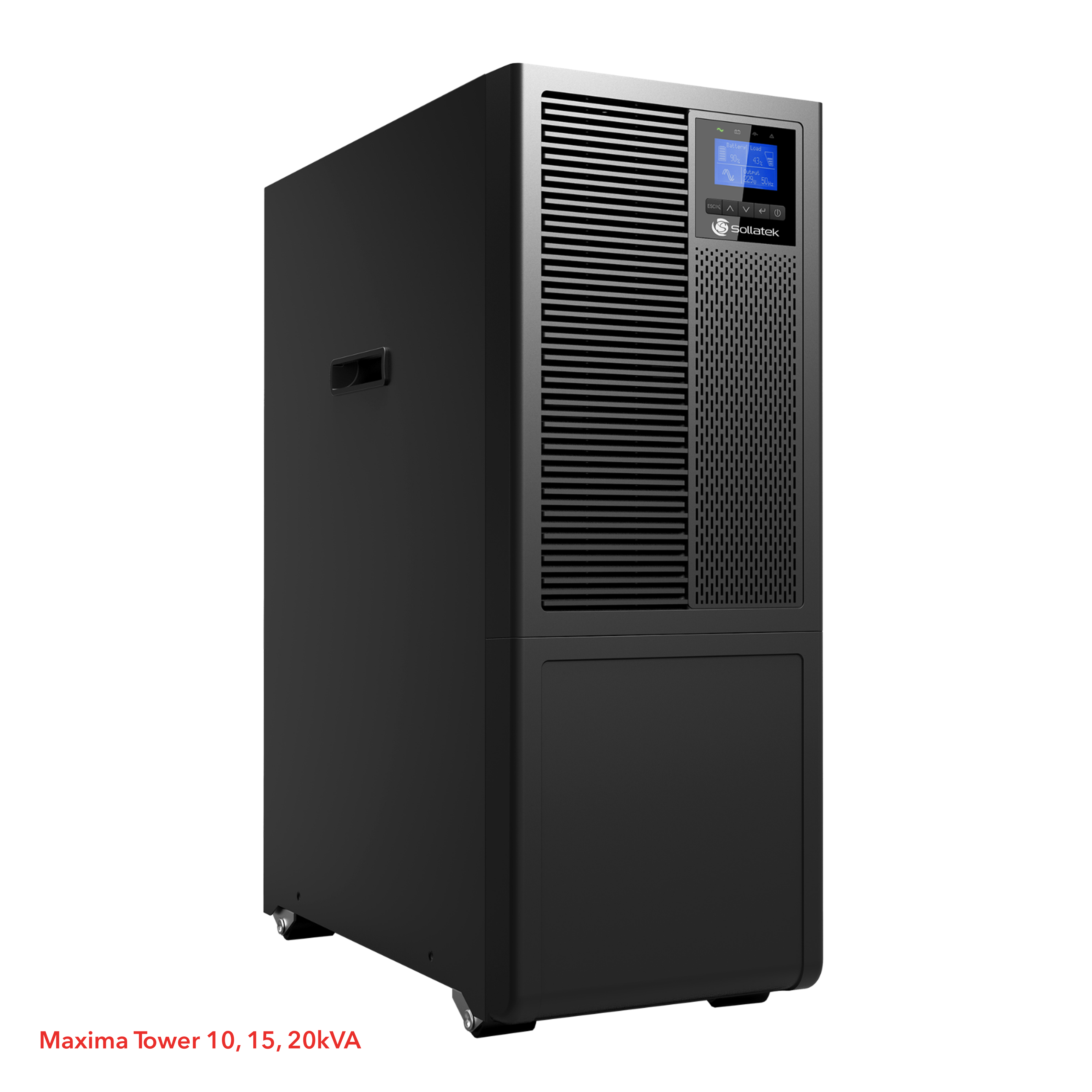

Maxima 3PH UR (10, 15, 20kVA)

Uninterruptible Power Supply

The Sollatek Maxima Series 3-Phase UPS, ranging from 10 kVA to 20 kVA, offers superior protection for critical systems, ensuring efficiency with up to 99% performance and a maximum 1.0 power factor. Its True Double-Conversion design, advanced DSP control, and wide input range guarantee stability even under fluctuating mains conditions, while scalability is supported through parallel operation (up to three units) and CVCF. Built-in protection features like OVCD, fan lock, and overload warnings enhance reliability for demanding applications.

Applications:

Data Centre
Telecommunications
Financial Services
Security and Surveillance System
Automatic Control System
Building Management
Manufacturing Process Control
Petro Chemical Industry

Features:

Enhanced Protection: OVCD, fan lock, over-temperature, and overload detection for maximum reliability in critical environments
Effortless Battery Integration: Automatic EBM detection, adjustable charging current, and flexible configurations to extend battery life
Quiet & Efficient: Low audible noise and high efficiency for energy savings, including a compact footprint
Advanced Display: Multi-language dot matrix LCD (optional) and colour touchscreen (standard) for easy setup and service
Future-Proof Connectivity: Ethernet and WLAN for secure cloud and IoT integration; mobile app (Android/iOS) for monitoring
Flexible Configuration: 10-20 kVA 3-3 models can be set as 3-1/1-1 or single/dual input for versatile wiring options
Compact & Quiet Design: Requires minimal installation space, while low audible noise ensures a comfortable environment
Superior Efficiency: Real PF 1 for more power in the same space, with true double-conversion for robust protection

Description

The Maxima UPS operates with user-friendly features like a multilingual dot matrix LCD, colour touchscreen, and secure cloud connectivity via an embedded Ethernet port, the Sollatek Maxima Tower Series 3-Phase UPS ensures seamless monitoring. IoT support through WLAN (optional) and a mobile app (Android/iOS) provide convenient remote management. Designed for mission-critical environments, the Maxima UPS combines efficiency, scalability, and advanced protection for uninterrupted power.

Description	Product Code
Maxima 3PH UR 1.0pf (No Battery) – 10K	9762T301-NB
Maxima 3PH UR 1.0pf (Battery) – 10K	9762T301-B
Maxima 3PH UR 1.0pf (No Battery) – 15K	9762T301-5NB
Maxima 3PH UR 1.0pf (Battery) – 15K	9762T301-5B
Maxima 3PH UR 1.0pf (No Battery) – 20K	9762T302-NB
Maxima 3PH UR 1.0pf (Battery) – 20K	9762T302-B

Specification

Maxima:

MAXIMA MODELS	10K	15K	15K
Capacity (VA/W)	10000 VA / 10000 W	15000 VA / 15000 W	20000 VA / 20000 W
Backup time: Typical value by default battery capacity, PF=1	1.8min 100% load 4.5min 50% load	2.0min 100% load 5.2min 50% load	1.8min 100% load 4.7min 50% load

Downloads
Datasheets
- UPS – Maxima 3PH UR 10kVA To 20kVA Datasheet (1MB)
Instruction Manuals
- UPS – Maxima 3PH UR 10-20kVA User Manual (7MB)
