Why hasn’t the voltage display changed but my input voltage has changed?

The SVS corrects the input voltage in increments (taps). If the input voltage moves form one tap to another, the output voltage can move visibly but remain within the output parameters of the unit. For example, as per table, if the input voltage is 240V, output is 240V. If the input moves up to 245, the output moves to 218. The LED display will remain unchanged in this instance as the output is still within the parameters (6% accuracy).

Which stabiliser can be used on the output of a generator? SVS range or AVR range?

Either would, both are suitable. Use an AVR if the main equipment are computers or computer like equipment. However, some small generators produce a wave shape may cause problems for the AVR/SVS measurement circuit. You can get very large frequency fluctuation too. Make sure the gen set is rated to at least twice the required current so as to reduce some of these problems. The Sollatek SVS is also Genset compatible and that would be the model of choice for small generators.

Home / Voltage Protection / Voltright / Single Phase / Standard: Single Phase - up to 20 Amps (5kVA) 230V Range / SVS20-22 (5kVA)

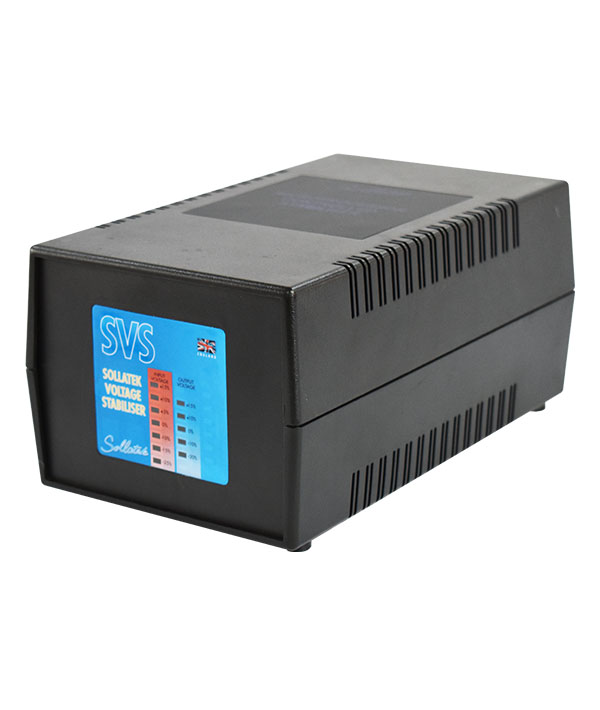

SVS20-22 (5kVA)

Over & Under Voltage Stabilisation Protection for Whole Buildings, Air Conditioners, Freezers & Multimedia

SVS20-22 provides voltage protection and stabilisation for all electrical and electronic equipment. It is a precise voltage stabiliser designed to protect against the harmful consequences of an unpredictable power supply.

Features

Stabilisation up to 20A
Direct wire connection
High voltage stabilisation
Low voltage stabilisation
Spikes/surges protection
Power-back surges protection
Basic Lighting protection
AVS function
Startup time delay
+/- 6% stabilisation
Solid state

Description

The Sollatek SVS monitors the mains voltage continuously. If the voltage rises or drops, the SVS will stabilise the output to ensure the voltage reaching your equipment remains constant at 230V (+/-6%), within the operating range of the unit. If the input voltage falls below 142V or rises above 295V, the SVS will disconnect the output, thereby protecting the load. Once the mains voltage returns again within acceptable limits, the SVS will reconnect the output following a start up delay. The SVS20 is a small light weight stabiliser rated up to 20Amps with a cable or terminal input/output, for direct wiring and secure connectivity. See connections tab above.

Specification

Model	Stock No
SVS20-22 230V Cable	98220060
SVS20-22 230V Terminal	98220000

Model	SVS20
Output Current	20Amps
VA@230V	4600V
VA@240V	4800V
Weight	15kg
Case type	Plastic
AVS function	YES
Startup delay	Yes
Spike protection	Yes
Dimension (mm)	162 x 132 x 275

Model	Barcode
SVS20(16)-22 Cable 20A/16A-CE 230/1/50	5060037800184
SVS20-22 21A Plastic Case Terminal 230V	5060037800733

Downloads
Brochures
- VoltRight SVS Brochure – English (2MB)
Datasheets
- SVS20-11 & SVS20-22 Datasheet (699KB)
Instruction Manuals
- SVS20 To 75 Single Phase User Manual – English (2MB)
Connection

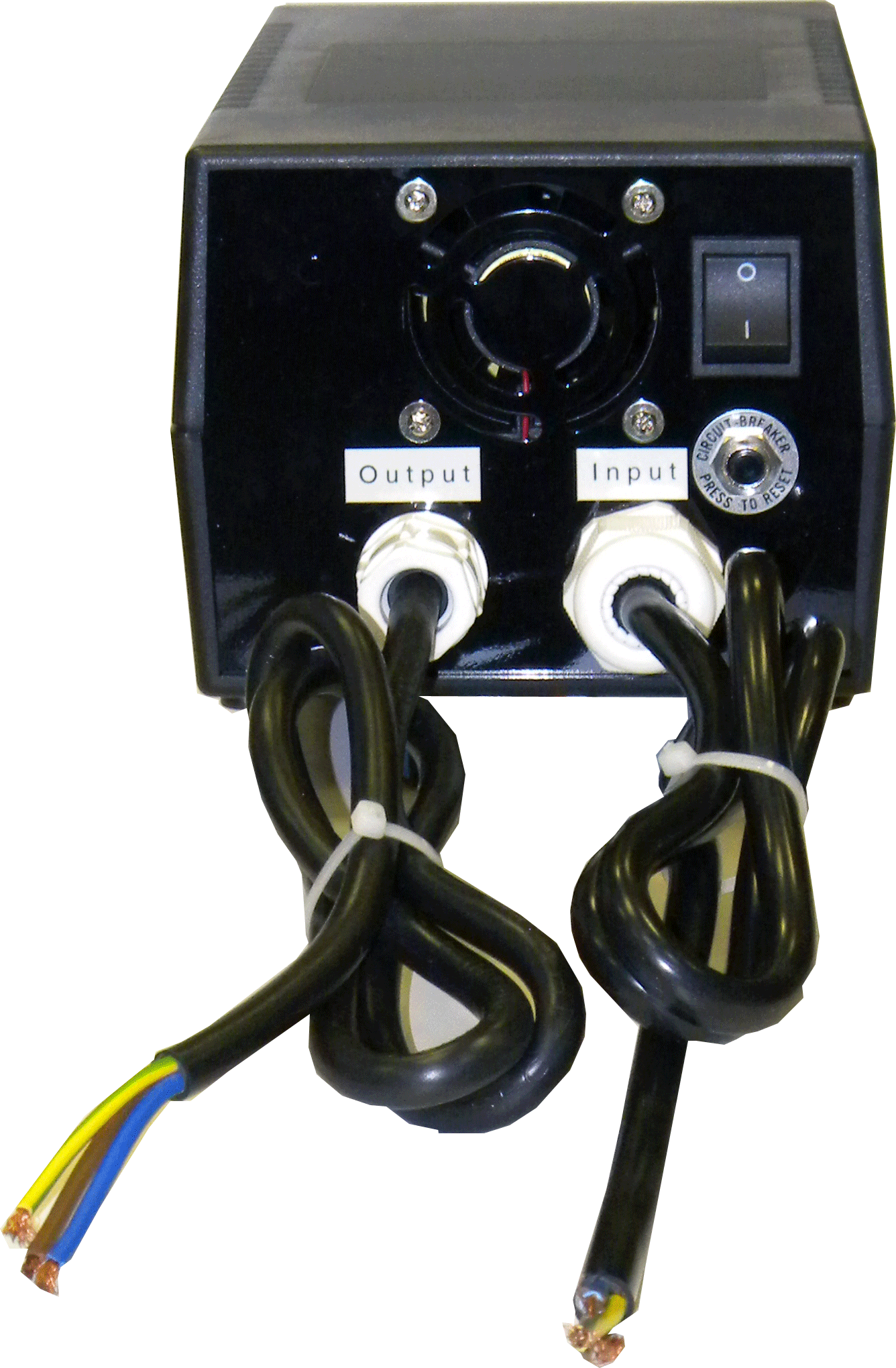

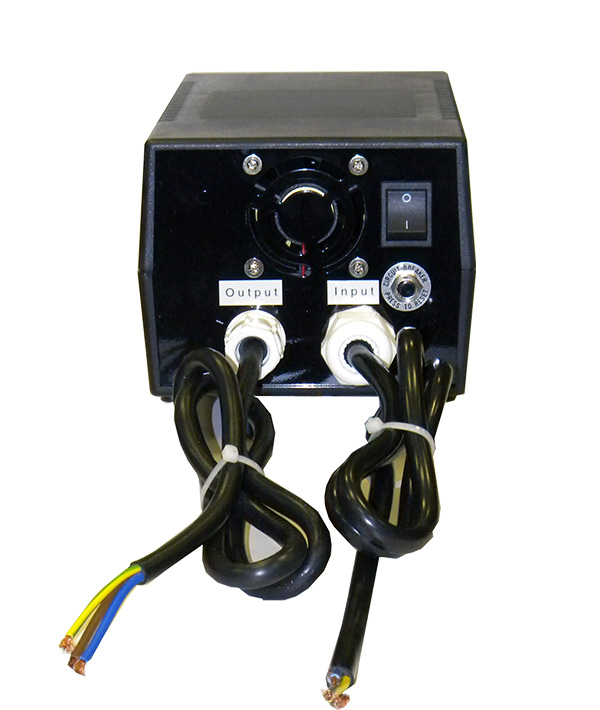

Cable connection

Terminal connection
Click on the question to get the full answer.

Why hasn’t the voltage display changed but my input voltage has changed?
The SVS corrects the input voltage in increments (taps). If the input voltage moves form one tap to another, the output voltage can move visibly but remain within the output parameters of the unit. For example, as per table, if the input voltage is 240V, output is 240V. If the input moves up to 245, the output moves to 218. The LED display will remain unchanged in this instance as the output is still within the parameters (6% accuracy).
Which stabiliser can be used on the output of a generator? SVS range or AVR range?
Either would, both are suitable. Use an AVR if the main equipment are computers or computer like equipment. However, some small generators produce a wave shape may cause problems for the AVR/SVS measurement circuit. You can get very large frequency fluctuation too. Make sure the gen set is rated to at least twice the required current so as to reduce some of these problems. The Sollatek SVS is also Genset compatible and that would be the model of choice for small generators.
