AVR3PSxxxx -Standard Range

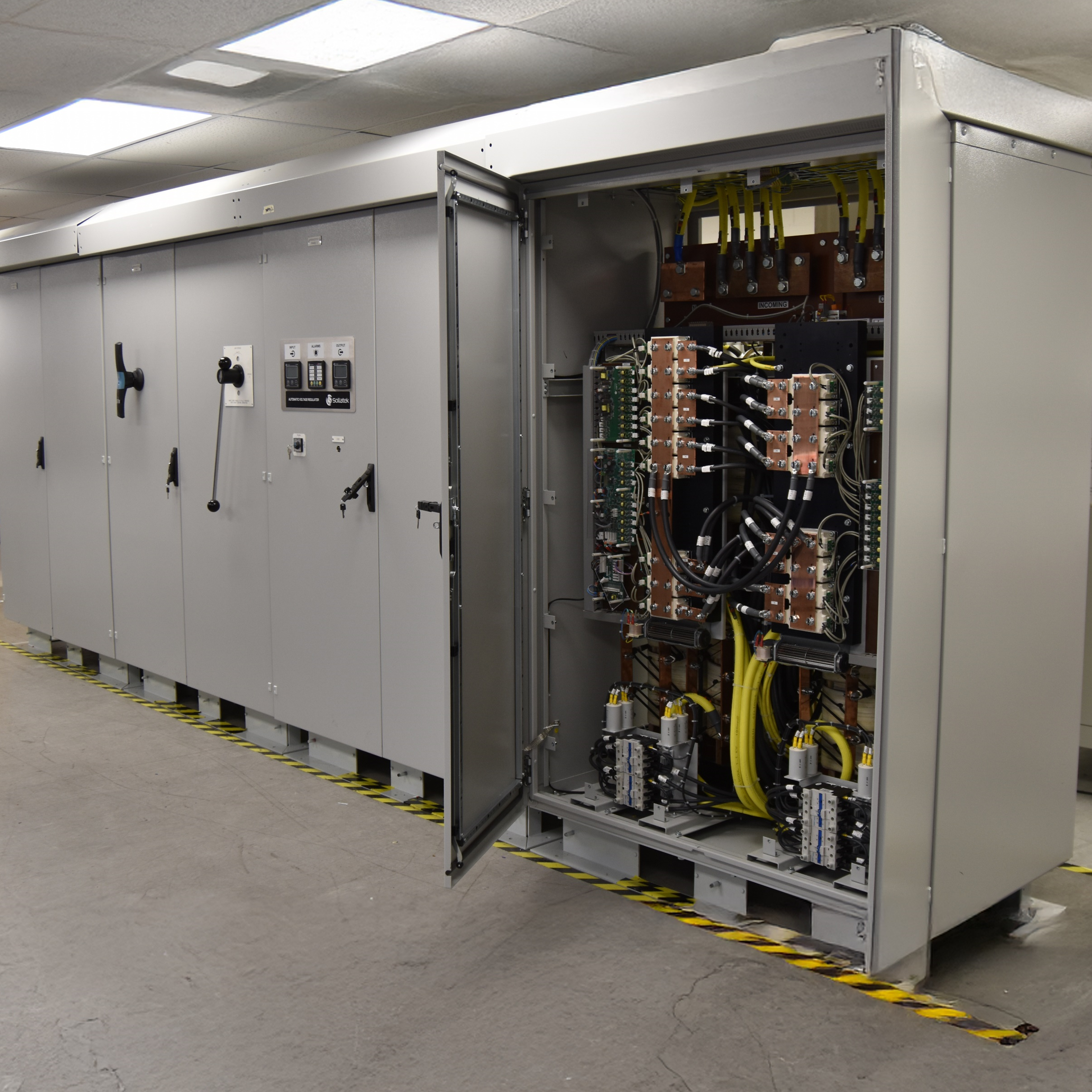

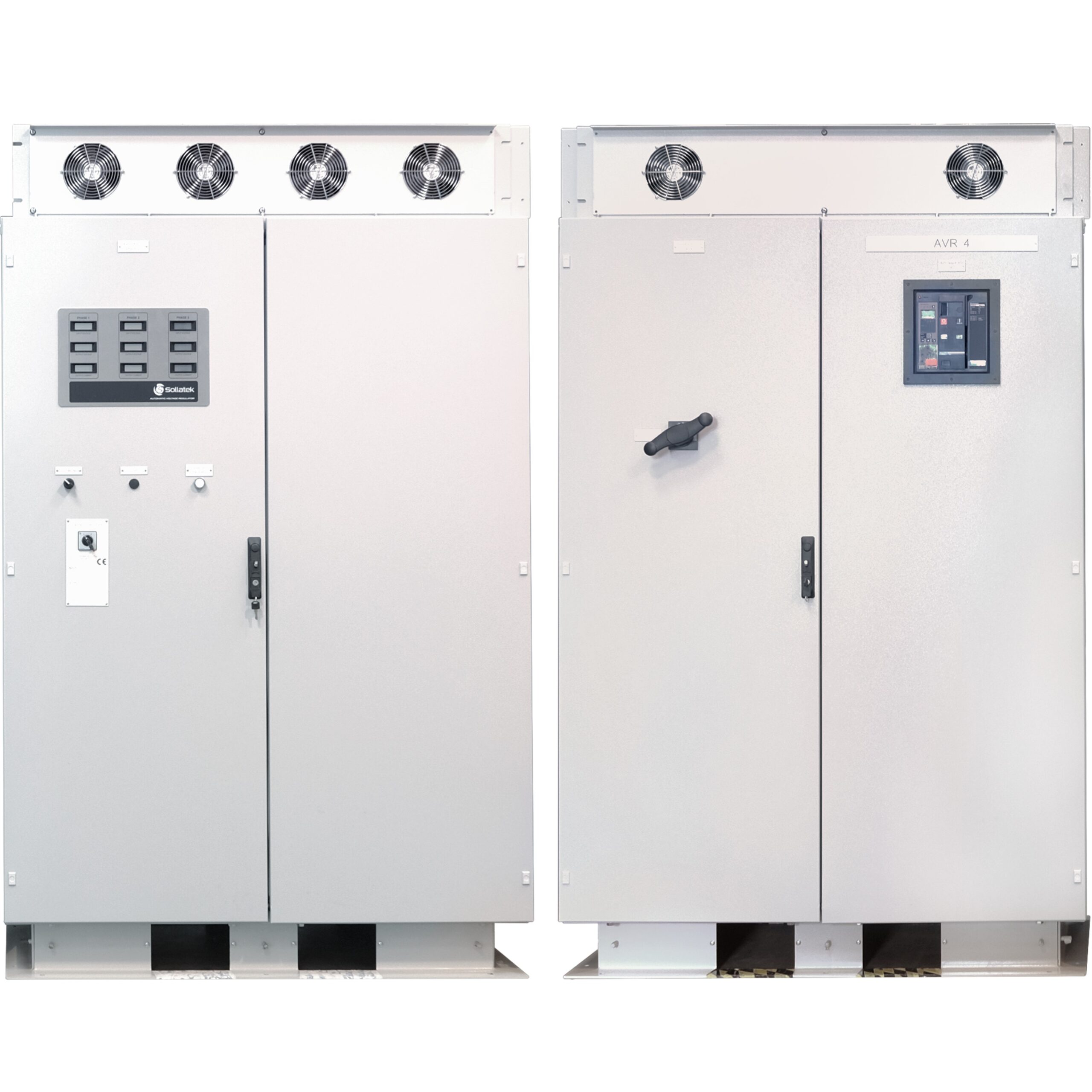

Three Phase Static Automatic Voltage Regulator

Designed for regions with voltage supply instability. Designed for remote
operation where a high degree of reliability is essential.

Fully electronic with no moving parts for:

Features:

High reliability
Speed of operation
Immunity to dust and other environmental conditions

The AVR is specified and used by a number of large organisations including

Suitable For:

Satellite operators
Infrastructure telecom companies
Embassies worldwide for reliable electrification of their posts
Medical systems for digital imaging, scanning and x-ray equipment
Mobile phone operators
Grid utility companies for voltage regulation to their sub-stations
Wind Farms
Various United Nations divisions including WHO, UNICEF and WFP

Description
Special Features
- Input voltage range ±20%.
- High output protection accuracy ±3%
- High overload capability with up to 150% for 4 minutes
- Very wide losses and minimal heat dissipation due to an efficiency of over 98% at full load
- Enclosure made of galvanised steel construction with high anticorrosion paint finish
- Warranty of 2 years. Sollatek provides full backup support on all its products, with local support in over twenty countries worldwide
Extra With
- Class II surge protection
- Digital display: input and output voltage, output current
- Internal automatic bypass
- Modem for remote monitoring
- Automatic Voltage Switcher (AVS) with HVD and LVD
- Input circuit breaker
- Output circuit breaker
- Manual bypass transferring the load to the utility grid
- Volt free contact alarms: High Temp Alarm, Over-Temp Alarm, Internal Bypass Status, External Bypass Status, I/P Circuit Breaker Status, O/P Circuit Breaker Status, LVD Alarm, HVD Alarm, General Fault
- Anti-condensation heaters

Specification

Input
Input voltage	230/400 V ±20%
Maximum Input Current	See table below
Frequency range	45 Hz to 75 Hz

Output
Output Accuracy	230/400 V ±3%
Maximum Output Current	See table below
Maximum Output Power	See table below

Downloads
Datasheets
- AVR3PSxxx -Range Datasheet 1 (MB)
- AVR3PS1000-11 Datasheet (1MB)
