Home / Voltage Protection / Voltshield / Single Phase / Single Phase up to 7 Amps / LightningGuard iSense

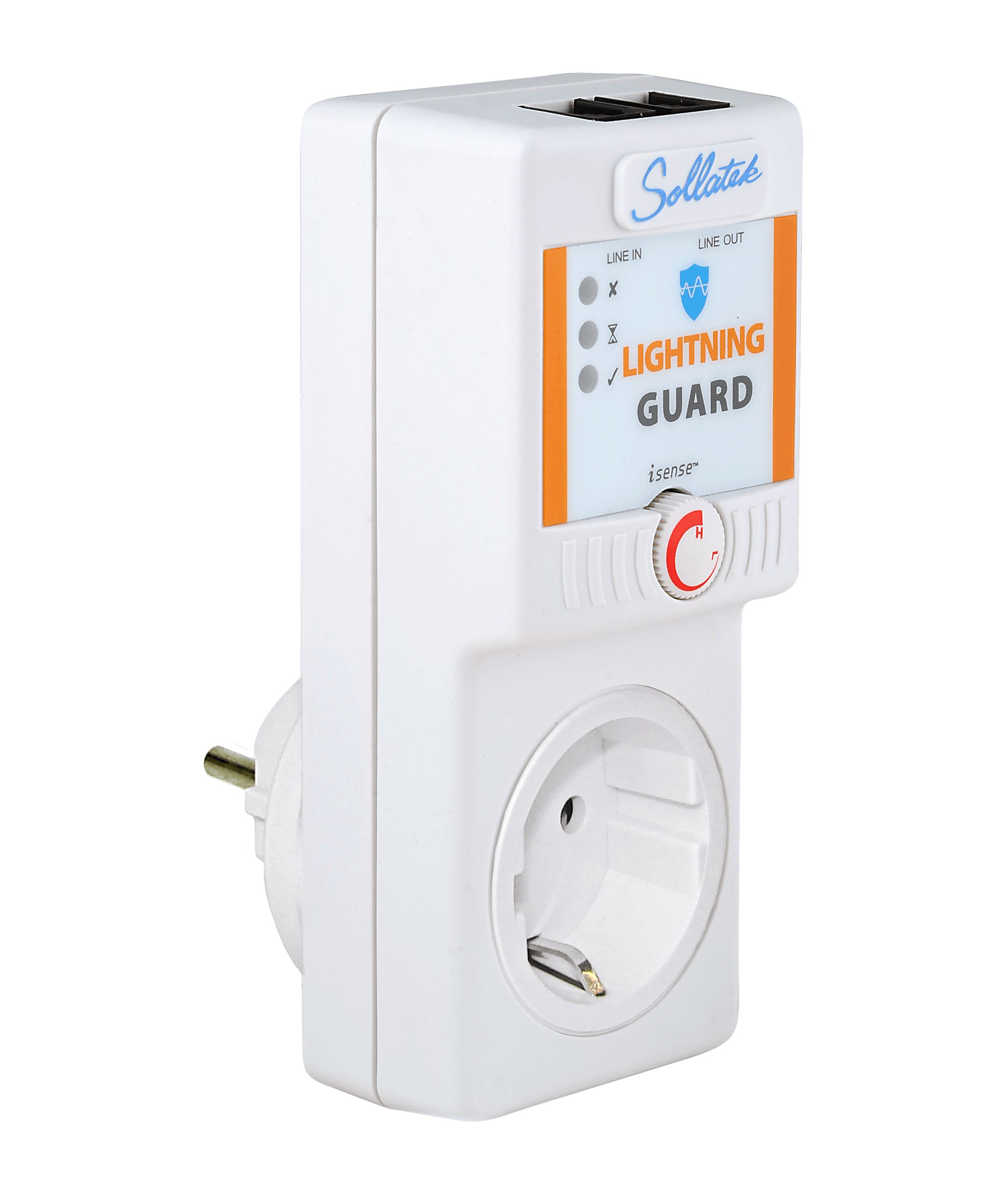

LightningGuard iSense

Over Voltage Protection & Data/Telecom Line Protection for Modems, Satellites, VSAT, Telephones & Computers

Protect against

High voltage
Spikes/surges
Powerback surges
Data line spike surges/lightning (i.e. for telephone, modem/fax lines)

Ideal for

Modem
Fax
Telephones
Routers
Max current: 6 amps
Mains surge / spike protection: 160 Joules
Mains surge / spike discharge: 6.5kA (8/20µs)
Data surge / spike discharge: >5kA

Wait time: 30 seconds

Description

Telecom and data equipment are susceptible to over voltage and also to surges/spike transmitted down the telephone lines especially due to lightning. The LightningGuard combines protection against over voltage (like the HivoltGuard) by disconnecting the power to the equipment when it goes above acceptable level.

Additionally, the LightningGuard adds data line protection that clamps surges/spikes transmitted through telephone lines. Like the HivoltGuard, it has a built in delay when power returns to normal. This will ensure that the appliance is not switched on-off repeatedly during fluctuations nor it is subjected to a massive surge normally experienced when power returns after power cuts.

TimeSave™ function
The TimeSave™ function will ensure the LIGHTNINGGUARD provides maximum operation time to your appliance by having built-in intelligence to check the off time. If the unit has been off for more than 30 seconds, it will reconnect the mains within 10 seconds rather than the standard 30 seconds wait time.

iSense™ function
The iSense™ technology allows you to control how sensitive the LIGHTNINGGUARD is to voltage problems. Using the iSense™ dial you can set the desired level of protection.

Model Product Code

LightningGuard- UK 92905000

LightningGuard- EU 92905100

LightningGuard- Indian 92905300
Specification

Max Power 6 Amps

Wait Time 30 Seconds. TimeSave 10sec

Ideal For Modems, Fax machines, Telephones

Weight 195gm

Dimensions 140 x 60 x 90mm
Downloads
Brochures
- Private: Voltage Protection Catalogue June 2014 (3 MB)
Datasheets
- Voltshield LightningGuard datasheet Feb 13 (1MB)
Instruction Manuals
- LG instruction manual (750KB)

iSense Function

Low setting ensures more working time, it will tolerate wider acceptable voltage limits. This is ideal for users with more erratic mains supply. This setting provides a wider window of acceptable voltage limits.
High setting ensures greater protection, by narrowing the acceptable voltage limits. This is ideal for users with less erratic mains supply that require better protection, typically in main cities where the power supply is fairly stable.
