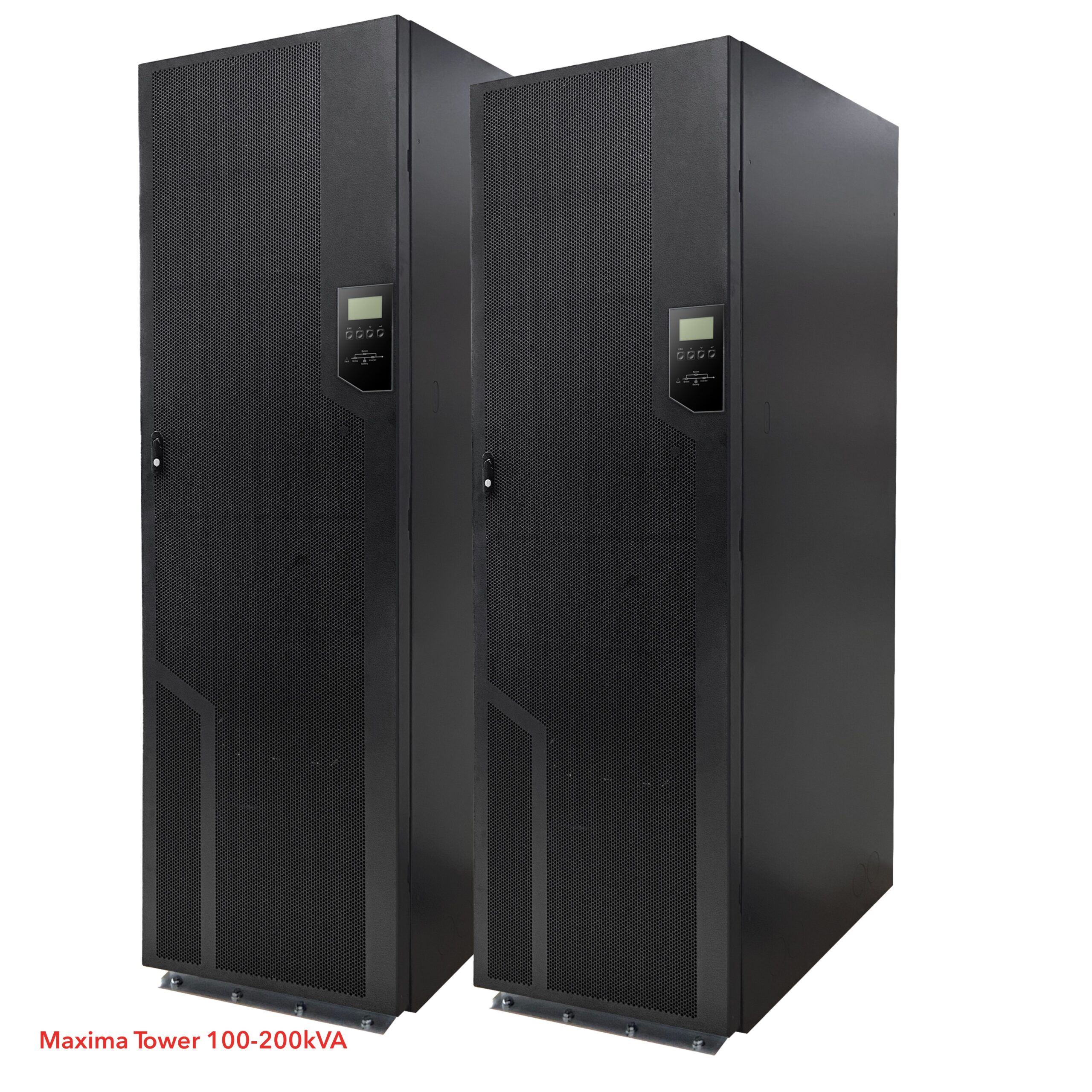

Maxima 3PH A2R (100kVA to 200kVA)

Uninterruptible Power Supply

The Sollatek Maxima Series 3-Phase UPS, ranging from 100 kVA to 200 kVA, offers exceptional protection for critical systems with an output power factor of 0.9 and a double conversion on-line topology for consistent power delivery. With up to 94% efficiency in inverter mode, it maximises energy savings while ensuring reliable performance. The system is equipped with intelligent battery management and its adjustable battery configuration allows for flexibility in setup, accommodating varying power requirements.

Applications:

Data Centre
Telecommunications
Financial Services
Security and Surveillance System
Automatic Control System
Building Management
Manufacturing Process Control
Petro Chemical Industry

Features:

Optimised Power Output: Output power factor of 0.9, delivering reliable performance with minimal energy loss
Double Conversion Technology: Advanced double conversion on-line topology for superior power protection and reliability
High Efficiency: Efficiency of up to 94% in inverter mode, ensuring energy savings and operational cost reduction
Intelligent Battery Management: Smart battery management system for enhanced performance, health, and longevity
Customisable Battery Configuration: Adjustable battery quantity for tailored solutions to meet specific power needs
Adaptable Environmental Design: Enhanced environmental adaptability for operation in various challenging conditions
Compact and Space-Saving: Streamlined design that reduces footprint, ideal for space-constrained installations
Scalable Expansion: Support for parallel operation of up to 4 units, enabling scalable power solutions as demand grows

Description

The enhanced environmental adaptability design ensures stable operation even in challenging conditions, while the compact footprint makes it an ideal choice for space-conscious environments. The UPS can be paralleled with up to 4 units, providing scalability for growing power demands. Combining high efficiency, flexible configurations, and superior adaptability, the Sollatek Maxima Tower Series 3-Phase UPS is designed to deliver long-lasting, dependable power for mission-critical applications.

Description (No Battery)	Product Code
Maxima 3PH A2R 0.9pf NB 100KS	9762T310
Maxima 3PH A2R 0.9pf NB 120KS	9762T310
Maxima 3PH A2R 0.9pf NB 160KS	9762T316
Maxima 3PH A2R 0.9pf NB 200KS	9762T320

Specification

Maxima Tower:

Maxima Models	100KS	120KS	160KS	200KS
Capacity (VA/W)	100 kVA / 90 kW	120 kVA / 108 kW	160 kVA / 144 kW	200 kVA / 180kW
Backup time	Varies from battery capacity and load situation	Varies from battery capacity and load situation	Varies from battery capacity and load situation	Varies from battery capacity and load situation

Unit Dimensions (WxDxH)	600 x 800 x 1876 mm	600 x 800 x 1876 mm	600 x 830 x 1876 mm	600 x 830 x 1876 mm
Unit Weight	283 kg	311 kg	475 kg	475 kg

Downloads
Datasheets
- UPS – Maxima 3PH A2R 100 To 200kVA Datasheet (620KB)
Instruction Manuals
- UPS – Maxima 3PH A2R 100-200kVA User Manual (11MB)
