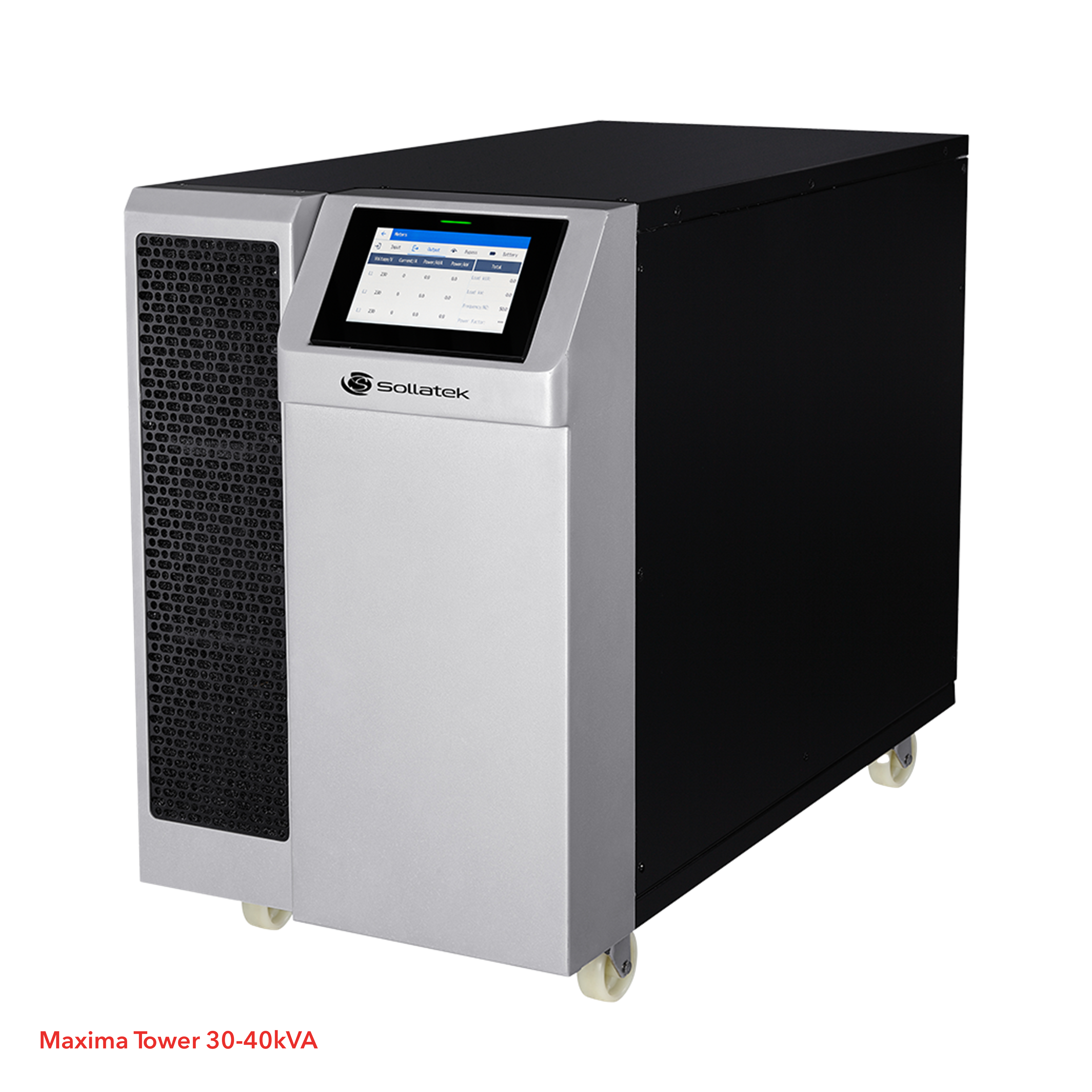

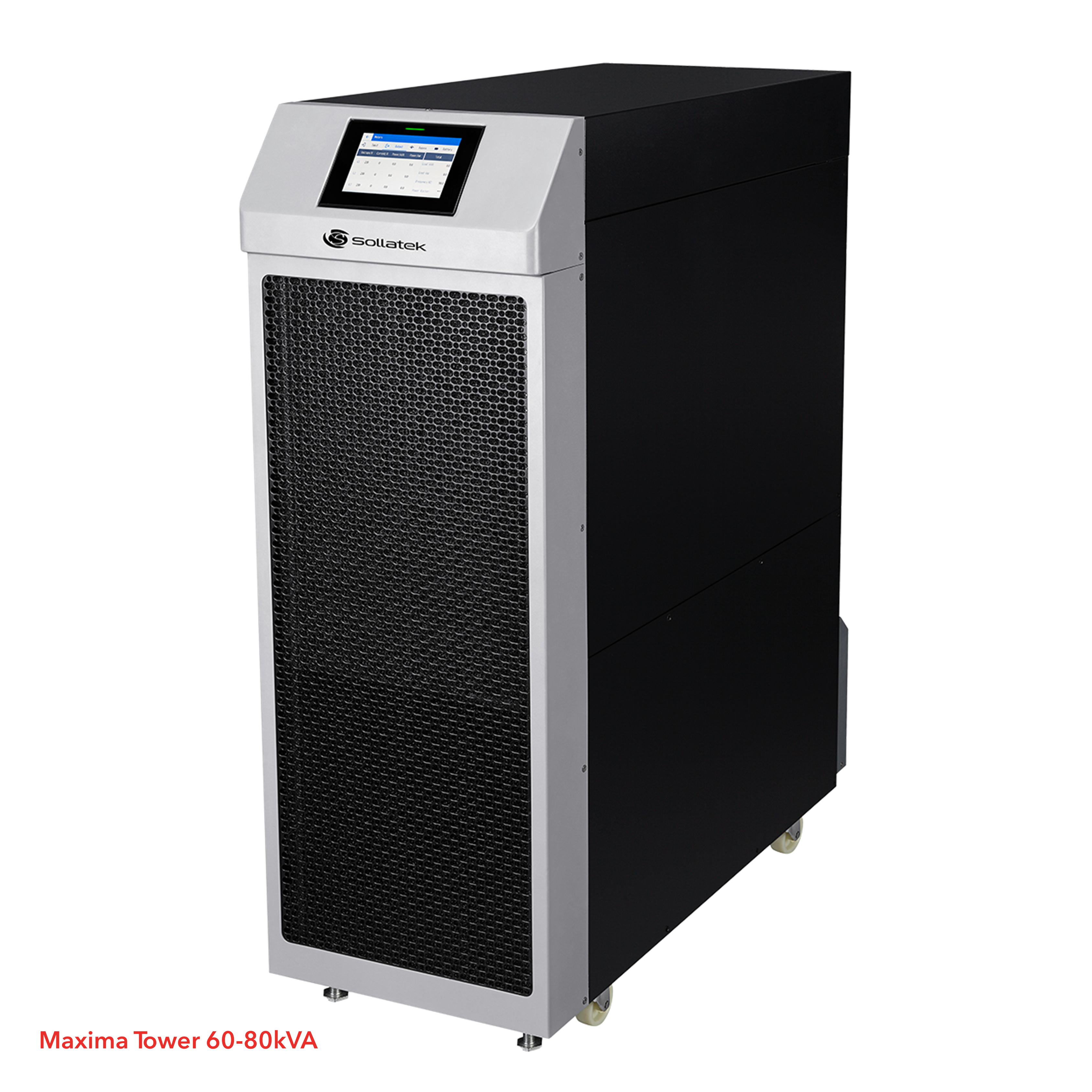

Maxima 3PH A3R (30kVA To 80kVA)

Uninterruptible Power Supply

The Sollatek Maxima Series 3-Phase UPS, from 30 kVA to 80 kVA, provides superior protection for critical systems with up to 99% efficiency and a 1.0 power factor. Its higher-density design reduces the footprint by 50%, ideal for space-saving. A powerful charger cuts charging time for quick recovery in demanding applications. With a predictable component lifetime, the system ensures reliability, while Optimised Battery Management (OBM) extends battery life by 50%, reducing replacements.

Applications:

Data Centre
Telecommunications
Financial Services
Security and Surveillance System
Automatic Control System
Building Management
Manufacturing Process Control
Petro Chemical Industry

Features:

Advanced Efficiency: Three-step IGBT PWM control technology with online mode efficiency up to 96%, and ECO mode efficiency up to 99%
Maximum Active Power: Output power factor of 1.0, delivering more active power with minimal loss
Space-Saving Design: Higher density reduces the footprint by up to 50%, making it ideal for compact environments
Fast Charging: Powerful charger dramatically reduces charging time, enhancing system uptime and productivity
Optimised Battery Management: OBM technology extends battery life by up to 50%, with flexible 32-44 battery for custom configurations

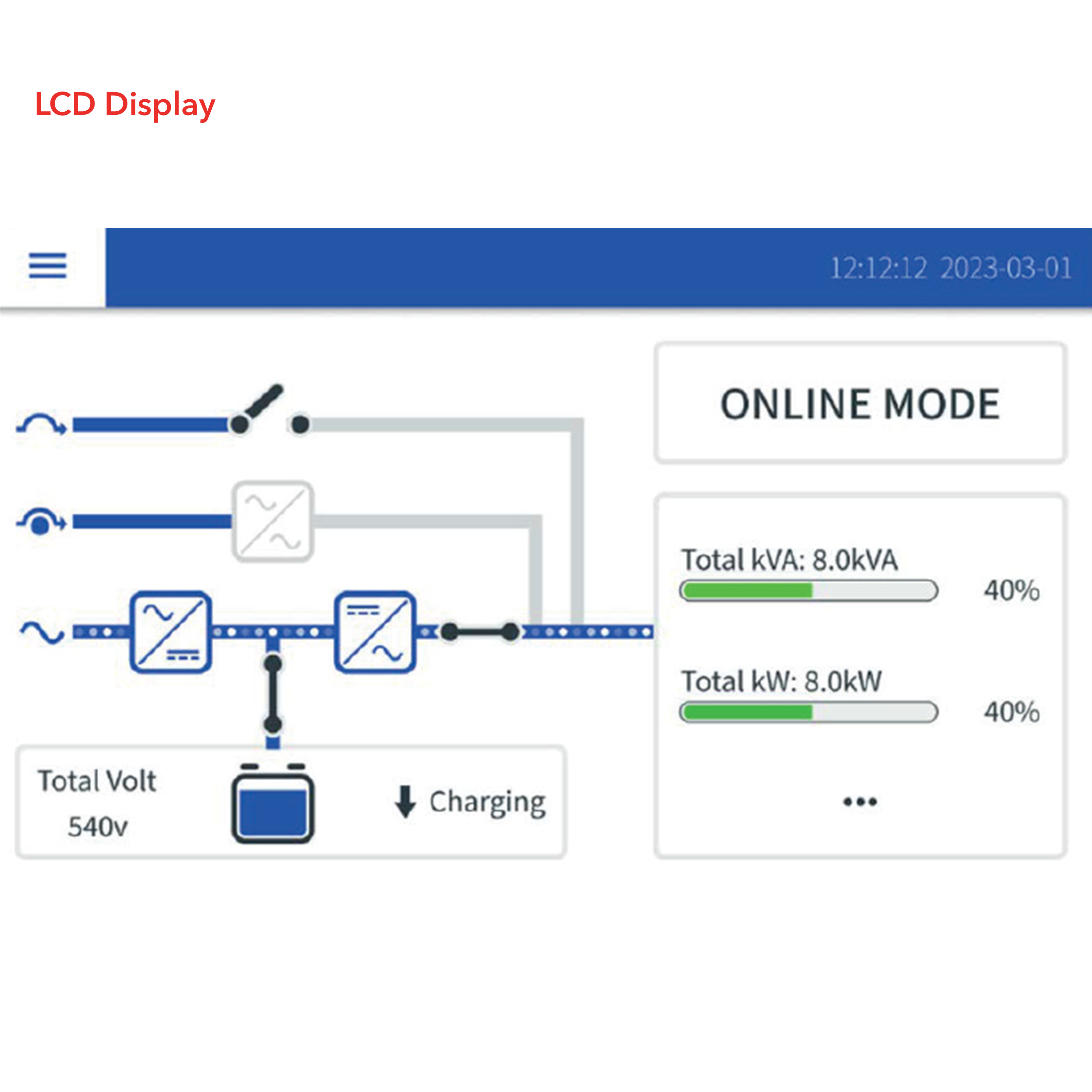

User-Friendly Interface: 5-inch colour touchscreen LCD with 10-language support for easy operation and monitoring
Durable Construction: Robust design featuring a dust-proof filter and PCBA coating for added protection in demanding environments
Extended Backup Options (Battery not included): Support for up to 4 external battery modules (EBMs) to extend backup time as needed

Description

The adjustable 32-44 battery configuration offers flexibility for customised setups. The 5-inch colour touch LCD, available in 10 languages, provides a user-friendly interface. The robust design includes a dust-proof filter and PCBA coating for durability and reliable performance in harsh environments. Combining efficiency, flexibility, and protection, the Sollatek Maxima Tower Series 3-Phase UPS delivers reliable, long-lasting power for mission-critical applications.

Description	Product Code
Maxima 3PH A3R 1.0pf (No Battery)- 30KS	9762T303
Maxima 3PH A3R 1.0pf (Battery) -30K	9762T303-B
Maxima 3PH A3R 1.0pf (No Battery) – 40KS	9762T304
Maxima 3PH A3R 1.0pf (Battery) – 40K	9762T304-B
Maxima 3PH A3R 1.0pf (No Battery) – 60KS	9762T306
Maxima 3PH A3R 1.0pf (Battery) – 60K	9762T306-B
Maxima 3PH A3R 1.0pf (No Battery) – 80KS	9762T308
Maxima 3PH A3R 1.0pf (Battery) – 80K	9762T308-B

Specification

Maxima Tower:

Maxima Tower Models	30K	40K	60K	80k
Capacity (VA/W)	30000 VA / 30000 W	40000 VA / 40000 W	60000 VA / 60000 W	80000 VA / 80000 W
Backup time	Varies from battery capacity and load situation	Varies from battery capacity and load situation	Varies from battery capacity and load situation	Varies from battery capacity and load situation

Battery is not included. For any inquiries, please contact Sollatek.
UPS systems with capacities up to 200 kVA are also available, reach out to the sales team for more information

Downloads
Datasheets
- UPS – Maxima 3PH A3R (30kVA To 80kVA) Datasheet (1MB)
Instruction Manuals
- UPS – Maxima 3PH A3R 20-80kVA User Manual (5MB)
